S25 - INVERTED T SHOWER GRAB RAIL

Product Attachments
Shower Grabrail Specification Sheet

Handing Left Hand

400-200mm x 1100mm $110.60

500-175mm x 1100mm $110.60

Handing Right Hand

400-200mm x 1100mm $110.60

500-175mm x 1100mm $110.60

1025-175mm x 1100mm $126.00

Handing Centered

300-300mm x 1100mm $110.60

AS1428.1-2021 Request custom design Support 1300 138 086 Trade accounts

Calculate delivery

Postcode

Estimate is for this product only. Delivery for your full cart is calculated at checkout.

Enter your postcode and hit Estimate to see delivery options.

No shipping options available for that postcode. Please contact us for a quote.
Free warehouse pickup

Collect from 25/69 Acacia Road, Ferntree Gully VIC 3156 by appointment — select Pickup at checkout. We'll email when your order is ready.
- Shower Grabrail Specification Sheet PDF
At Axess Trading we have a multi carrier freight policy. We use a variety of delivery services; depending on the delivery destination by post code and the type of parcel (bulky item or carton)

Shipping is within Australia only unless otherwise arranged with our customer service.

International shipping is available by request only.

No deliveries to post office boxes can be made.

For goods to be left at your front door, please request a consent form from our customer service.

When placing an order by phone please ask our friendly customer service about your delivery options. When placing an order on-line shipping cost will be calculated according to your requested delivery postcode and the volumetric size of the shipment measured in cubic meters.
Handing

Centered, Left Hand, Right Hand

Dimensions

1025-175mm x 1100mm, 300-300mm x 1100mm, 400-200mm x 1100mm, 500-175mm x 1100mm

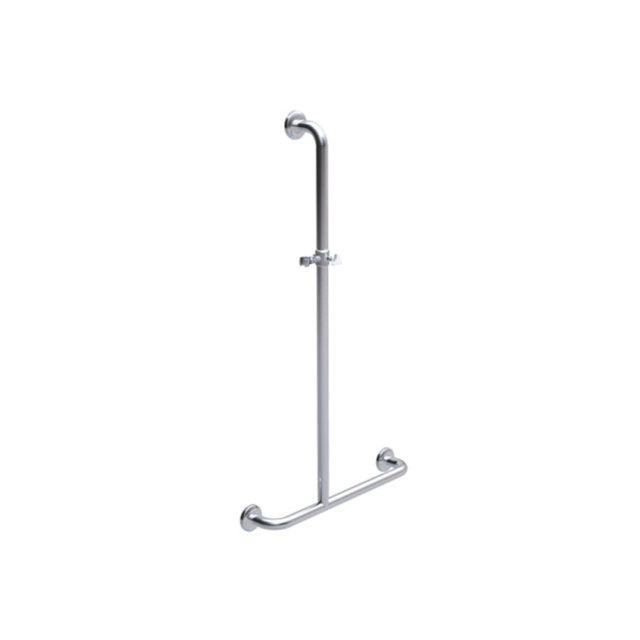

Inverted T Shower Rail Selection

Part No	Description	A	B
EGS25.10.SC	As Shown (Left)	400mm	200mm	Made to order - please contact us at 1300 138 086
EGS25.11.SC	Opposite Hand	400mm	200mm	Made to order - please contact us at 1300 138 086
EGS25.20.SC	Centered	300mm	300mm	Made to order - please contact us at 1300 138 086
EGS25.30.SC	As Shown (Left)	500mm	175mm	AS1428.1-2021 Accessible*
EGS25.31.SC	Opposite Hand	500mm	175mm	AS1428.1-2021 Accessible*
EGS26.10.SC	As Shown (Left)	175mm	1025mm	AS1428.1-2021 Accessible* Made to order - please contact us
EGS26.11.SC	Opposite Hand	1025mm	175mm	AS1428.1-2021 Accessible* Made to order - please contact us

(Sliding shower bracket not included)

These inverted T shower rails get fully TIG welded in our factory in Ferntree Gully. This is a made to order item and may require 1 to 2 business days to manufacture.

Builders use an inverted T shower grab rail whenever possible. In addition, the vertical rail lends itself for attachment hand shower holders.

Our premier sliding hand shower brackets fit snuggly over the vertical rail, adding to its usefulness. Moreover, the vertical adjustment of the hand shower holder helps users with their shower needs. Whilst the sliding shower bracket is height adjustable on the inverted t shower rail, it is also adjustable in all directions by the nature of its design.

In addition, a shower rail offers the user a confidence inspiring experience. To that end we incorporated a 5 hole fixing flange design for added fixing strength.

Architects and interior designers carefully select shower grab rails for the desired orientation, left hand or righthand positioning of the vertical rail. Conversely, this affects the design and compliance of any AS1428.1-2021 Accessible shower compartment.

*Compliant with AS1428.1-2021, if installed as per the provisions of the standard

S20 – DISABLED SHOWER GRAB RAILS WITH VERTICAL CONNECTA

As this is a bulky freight item consider using our S25 Cr: Inverted T Shower Grab Rail with Connecta Rail

Optional grab rail accessories.
